HRD Honda Fast Response IAT Sensor (Universal 1/8th NPT)
Faster IAT data means smarter timing and safer pulls, so we engineered our fast-response sensor to deliver real temps with lightning speed.
Over 1000% quicker than OE, and that's not a typo.
SKU: HRD-IAT-NPT
UPC: 850065963044
You won't find a faster sensor, period.
Our fast response IAT sensor is hand made, using specially manufactured thermistors that are matched very closely to the OEM Sensor's resistance curve. This ensures that the ECU reads the correct temperature with instantaneous speed.
Product Information
Overview
Many turbo Honda builds use the OEM OBD1 IAT (Intake air temperature) sensor to read the IATs. While this is more accurate than using the factory MAF sensor that sits before the turbo, the OBD1 IAT sensor does have one major flaw; the response time.
The principle of IAT sensors are all the same, in the core of the sensor lies a NTC thermistor that changes resistance proportional to the temperature. The ECU can then use the resistance value to determine the air's temperature. The problem with the OBD1 is that the NTC thermistor is shielded around plastic. Plastic is an insulator and does not conduct heat very well. This results in delayed feedback to the ECU.
HRD's fast response IAT sensor is hand made, using specially manufactured thermistors that are matched very closely to the OEM Sensor's resistance curve. This ensures that the ECU reads the correct temperature at an almost instantaneous speed.
The resistance curve of our "NPT" sensors are matched to the Honda sensor PN: 37880-P05-A00
The principle of IAT sensors are all the same, in the core of the sensor lies a NTC thermistor that changes resistance proportional to the temperature. The ECU can then use the resistance value to determine the air's temperature. The problem with the OBD1 is that the NTC thermistor is shielded around plastic. Plastic is an insulator and does not conduct heat very well. This results in delayed feedback to the ECU.
HRD's fast response IAT sensor is hand made, using specially manufactured thermistors that are matched very closely to the OEM Sensor's resistance curve. This ensures that the ECU reads the correct temperature at an almost instantaneous speed.
The resistance curve of our "NPT" sensors are matched to the Honda sensor PN: 37880-P05-A00
Technical Specs

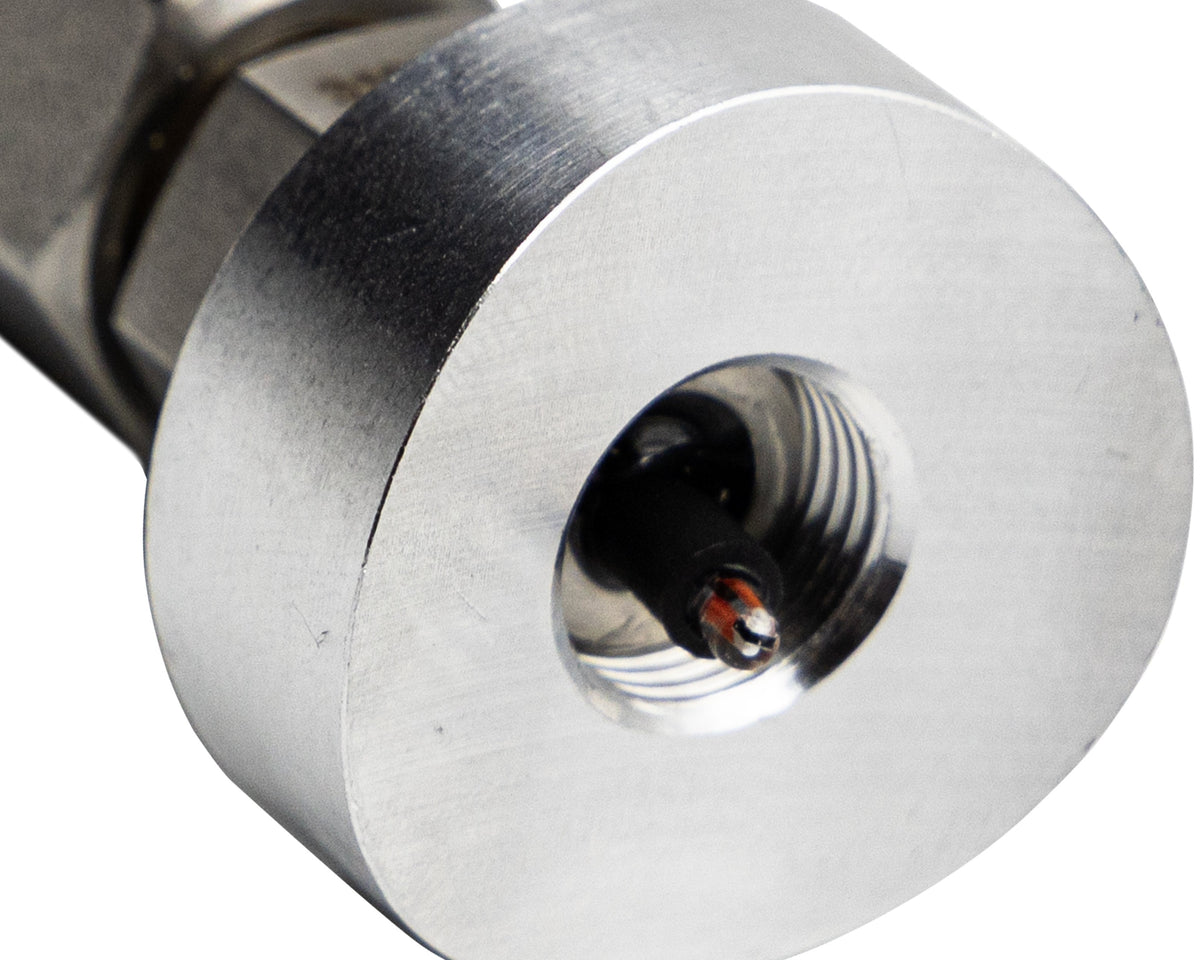

This sensor is an open-element IAT sensor that uses a custom ±1% precision thermistor matched to the OEM Honda resistance curve. It delivers near-instant temperature response on turbocharged setups and provides near real-time intake air temperature data during acceleration by reducing sensor lag under rapid temperature changes.

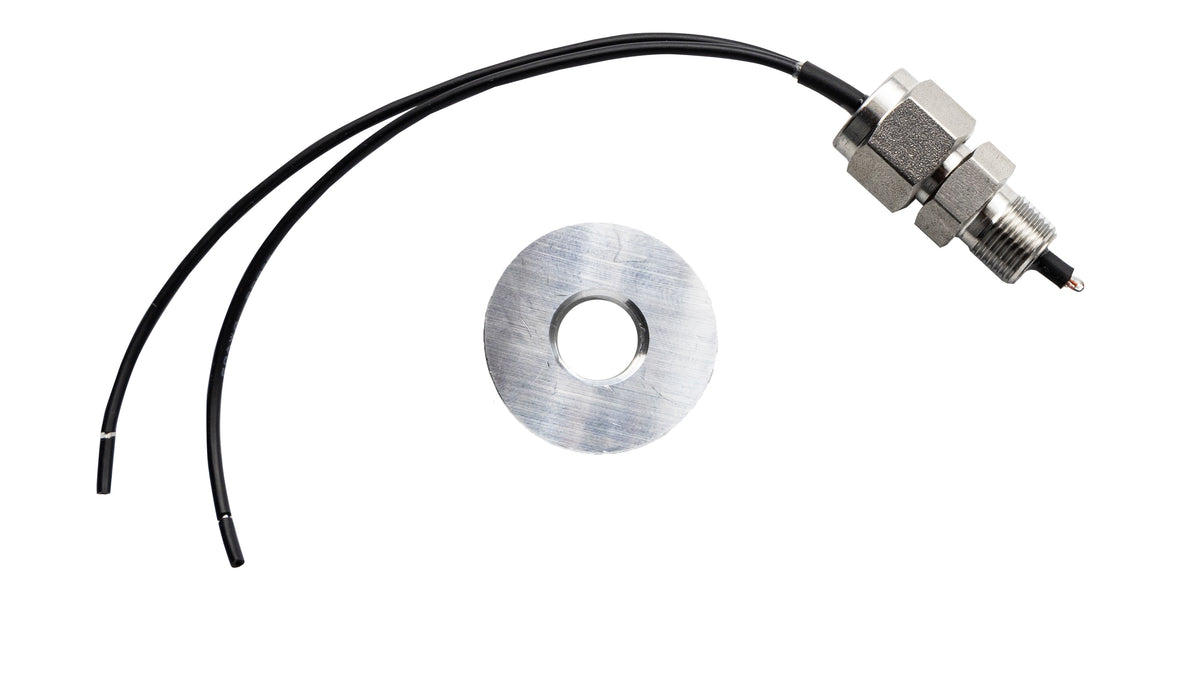

What's in the Box
1x Fast-response IAT Sensor
1x Weld-on 1/8 NPT Bung
1x HRD Decal
1x Weld-on 1/8 NPT Bung
1x HRD Decal
Warranty
This product is covered by our industry leading limited-lifetime warranty. To read more about our warranty you can visit our coverage page by clicking here.
